GTSAXS

From GISAXS
Jump to: navigation, search

GTSAXS, or Grazing-incidence Transmission Small-Angle X-ray Scattering is a variant of GISAXS; i.e. it is a surface-sensitive x-ray scattering technique. In GTSAXS, the x-ray beam is directed towards the edge of a sample (rather than the center). This small geometric difference allows the sub-horizon scattering (which is normally attenuated due to substrate absorption) to escape from the sample edge, and be recorded. This sub-horizon scattering is 'cleaner' than conventional GISAXS data. In particular, it suffers much less from the refraction-induced distortion of reciprocal-space and the multiple scattering effects that plague conventional GISAXS.

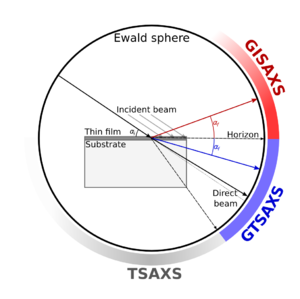

Geometry of a GTSAXS experiment. In the GTSAXS geometry, the x-ray beam is directed towards the edge of the substrate, so that the direct beam and nearby small-angle scattering can escape without being absorbed by the substrate.

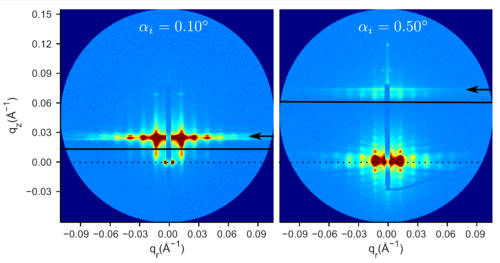

Example of GISAXS data (left) and GTSAXS data (right) for a 'fingerprint' pattern (vertical BCP lamellae). The higher incidence angle of GTSAXS moves the refraction-distortion (and the Yoneda) away from the data. The GTSAXS data is much 'cleaner', as it is not distorted and does not exhibit the 'peak splitting' that arises from multiple-scattering.

Comparison

GTSAXS can be thought of as a combination of a transmission-scattering (TSAXS) and grazing-incidence (GISAXS). In some sense, it combines the simple of data analysis of TSAXS with the surface-sensitive probing of GISAXS.

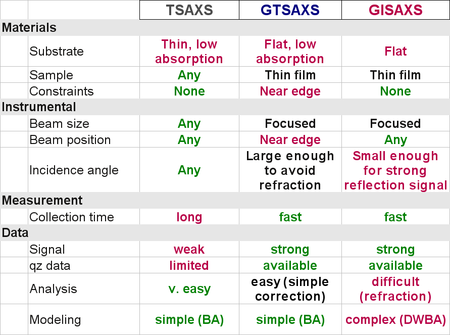

GTSAXS comparison table01.png

The main disadvantage of GTSAXS is sample preparation: the material of interest must be near the edge of the substrate. Standard film preparation methods may not yield a representative material near edges. For instance, spin-coating frequently leads to material build-up near substrate edges; this thicker region will dominate the GTSAXS signal, and not be representative of the thin-film structure in the center of the substrate. This can be easily overcome by cleaving substrates, so as to expose a representative edge for probing.
