# Diffuse scattering

**Diffuse scattering** is the scattering that arises from any departure of the material structure from that of a perfectly regular lattice. One can think of it as the signal that arises from disordered structures, and it appears in experimental data as scattering spread over a wide *q*-range (diffuse). Diffuse scattering is generally difficult to quantify, because of the wide variety of effects that contribute to it.

Bragg diffraction occurs when scattering amplitudes add *constructively*. If there is a defect in a crystal lattice (e.g. atom missing or in a slightly 'wrong' position), then the amplitude of the Bragg peak decreases. This 'lost' scattering intensity is redistributed into diffuse scattering. The diffuse scattering thus arises from the local (short range) configuration of the material (not the long-range structural order).

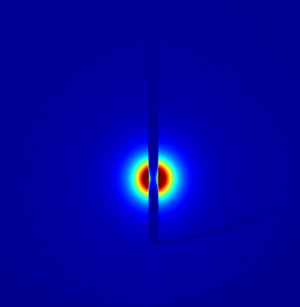

In the limit of disorder, one entirely lacks a realspace lattice and thus scattering does not generate any Bragg peaks. However, a disordered structure will still give rise to diffuse scattering. The Fourier transform of a disordered structure will not give any well-defined peaks, but will give a distribution of scattering intensity over a wide range of *q*-values. Thus samples with an inherently disordered structure (polymer blends, randomly packed nanoparticles, etc.) will only generate diffuse scattering.

## Contents

## Causes

This is only a partial list of sources of diffuse scattering:

**Thermal motion**causes atoms to jitter about their ideal unit cell positions, which decorelates them. This suppresses the intensity of the Bragg peaks, especially the higher-order peaks (see Debye-Waller factor), and instead generates high-*q*diffuse scattering. (One can also think of this in terms of phonons: in ordered systems the diffuse scattering is probing phonon modes.)**Static disorder**in crystals (vacancy defects, substitutional defects, stacking faults, etc.) similarly creates diffuse scattering.**Grain structure**in otherwise ordered materials will also contribute. The grains themselves can count as 'scattering objects', but since their size is ill-defined, the grain boundaries give rise to diffuse scattering.**Nanoscale disorder**gives rise to low-*q*diffuse scattering. For instance, a disordered polymer blend (or a bulk heterojunction) or a random packing of nanoparticles, will generate substantial low-*q*diffuse scattering.**Surface roughness**in thin films measured by GISAXS gives rise to low-*q*diffuse scattering in GISAXS. Roughness will tend to broaden (and increase the intensity of) the specular rod, and will also generate intense low-*q*scattering.**Particle size/shape polydispersity**introduces a diffuse background.**Polymer chains in solution**generate scattering without a well-defined size-scale. This is normally interpreted in terms of the form factor of the polymer chain. However one can also think of it as the polymer chains having disordered arrangements and thus giving rise to diffuse scattering (c.f. definitional boundaries). Polymer clustering or gelation can also give rise to diffuse-like scattering.

## Analysis: low-*q*

Diffuse scattering can be difficult to quantify, since so many different effects contribute to it. Nevertheless, if one has a good understanding of the expected kind of disorder, one can fit the diffuse scattering with a model.

### Ornstein-Zernike model

Yields correlation length (*ξ*):

- References:
- M. Kahlweit , R. Strey , P. Firman "Search for tricritical points in ternary systems: water-oil-nonionic amphiphile"
*J. Phys. Chem.*1986, 90, 4, 674. doi: 10.1021/j100276a038 - M. Teubner and R. Strey "Origin of the scattering peak in microemulsions"
*J. Chem. Phys.*1987, 87, 3195. doi: 10.1063/1.453006 - U. Nellen, J. Dietrich, L. Helden, S. Chodankar, K. Nygård, J. Friso van der Veenbc, C. Bechingerad "Salt-induced changes of colloidal interactions in critical mixtures"
*Soft Matter*2011, 7, 5360. doi: 10.1039/c1sm05103b

- M. Kahlweit , R. Strey , P. Firman "Search for tricritical points in ternary systems: water-oil-nonionic amphiphile"

### Debye-Bueche random two-phase model

Yields correlation length (*a*):

- References:
- P. Debye, A.M. Bueche "Scattering by an Inhomogeneous Solid"
*J. Appl. Phys.*1949, 20, 518. doi: 10.1063/1.1698419 - P. Debye, H.R. Anderson, H. Brumberger "Scattering by an Inhomogeneous Solid. II. The Correlation Function and Its Application"
*J. Appl. Phys.*1957, 28, 679. doi: 10.1063/1.1722830 - NCNR page

- P. Debye, A.M. Bueche "Scattering by an Inhomogeneous Solid"

### Guinier model

Yields average radius of gyration (*R _{g}*):

- References:
- B. Hammouda A new Guinier-Porod model
*J. Appl. Cryst.***2010**, 43, 716-719. doi: 10.1107/S0021889810015773

- B. Hammouda A new Guinier-Porod model

### Additional

- G. Beaucage Approximations Leading to a Unified Exponential/Power-Law Approach to Small-Angle Scattering
*J. Appl. Cryst.***1995**, 28, 717-728. doi: 10.1107/S0021889895005292[ - G. Beaucage Small-Angle Scattering from Polymeric Mass Fractals of Arbitrary Mass-Fractal Dimension
*J. Appl. Cryst.***1996**, 29, 134-146. doi: 10.1107/S0021889895011605 - B. Hammouda A new Guinier-Porod model
*J. Appl. Cryst.***2010**, 43, 716-719. doi: 10.1107/S0021889810015773

## Analysis: high-*q*

### Porod law

For high-*q*, gives specific surface area (*S*):

- References:
- W. Ruland "Small-angle scattering of two-phase systems: determination and significance of systematic deviations from Porod's law"
*J. Appl. Cryst.*1971, 4, 70. doi: 10.1107/S0021889871006265 - J. T. Koberstein, B. Morra and R. S. Stein "The determination of diffuse-boundary thicknesses of polymers by small-angle X-ray scattering"
*J. Appl. Cryst.*1980, 13, 34. doi: 10.1107/S0021889880011478 - Wikipedia: Porod law

- W. Ruland "Small-angle scattering of two-phase systems: determination and significance of systematic deviations from Porod's law"

### Porod fractal law

For high-*q*, gives specific surface area:

- References:

## Structured Diffuse Scattering

Even the highest-quality single-crystal materials exhibit some level of disorder, giving rise to diffuse scattering. Single-Crystal Diffuse Scattering (SCDS) can be analyzed to understand local (short-range) ordering. Experimentally, it appears as weak and diffuse 'lines' that interconnect between the bright diffraction spots. While the diffraction spots describe the idealized unit-cell, this diffuse scattering encodes the deviation from the average structure. The diffuse scattering can be quantitatively modeled.

- T. R. Welberry and D. J. Goossens The interpretation and analysis of diffuse scattering using Monte Carlo simulation methods
*Acta Crystallographica Section A: Foundations and Advances***2008**, 64 (1), 23-32 doi: 10.1107/S0108767307041918 - E. J. Chan, T. R. Welberry, D. J. Goossens, A. P. Heerdegen, A. G. Beasley and P. J. Chupas Single-crystal diffuse scattering studies on polymorphs of molecular crystals. I. The room-temperature polymorphs of the drug benzocaine
*Acta Crystallographica Section B Structural Science*'*2009*, B65 (3), 382-392 doi: 10.1107/S0108768109015857 - T. R. Welberry and D. J. Goossens Diffuse scattering and partial disorder in complex structures
*IUCrJ***2014**1 (6), 550-562 doi: 10.1107/S205225251402065X - E. J. Chan On the use of molecular dynamics simulation to calculate X-ray thermal diffuse scattering from molecular crystals
*J. Appl. Cryst.***2015**, 48. doi: 10.1107/S1600576715013242 - A.G.A. Nisbet, G. Beutier, F. Fabrizi, B. Mosera and S. P. Collins Diffuse multiple scattering
*Acta Cryst. A***2015**, 20-25. doi: 10.1107/S2053273314026515

More broadly, highly anisotropic and structured diffuse scattering indicates that the material exhibits some non-trivial combination of order and disorder in realspace. For instance, the disorder/defects may be ordered in some way (correlated disorder). Whereas diffuse scattering is traditionally seen as encoding structuring on a very local scale, structured diffuse scattering relates to order on intermediate size-scales.

- Ray Withers A modulation wave approach to the order hidden in disorder
*IUCrJ***2015**, 2 (1), 74-84 doi: 10.1107/S2052252514022556 - David A. Keen & Andrew L. Goodwin The crystallography of correlated disorder
*Nature***2015**, 521, 303-309. doi:10.1038/nature14453

## Liquid Surface Diffuse Scattering

Grazing-incidence scattering can be performed on liquid interfaces. GISAXS scattering peaks may be seen if there is some kind of ordering at the interface (e.g. nanoparticles); but a pure liquid interface will, generically, not exhibit structural scattering. However, the disorder of the interface will generate diffuse scattering. In particular, the interface will fluctuate due to thermally-induced waves: i.e. capillary waves.

- Oleg Shpyrko Overview of X-ray Reflectivity and Diffuse Scattering from Liquid Surfaces
- C. Fradin, A. Braslau, D. Luzet, D. Smilgies, M. Alba, N. Boudet, K. Mecke & J. Daillant Reduction in the surface energy of liquid interfaces at short length scales
*Nature***2000**, 403, 871-874. doi: 10.1038/35002533

## Nanoscale Diffuse Scattering

- A. Fernández Herrero, M. Pflüger, J. Probst, F. Scholze and V. Soltwisch Characteristic diffuse scattering from distinct line roughnesses
*J. Appl. Cryst.***2017**, 50, 1766-1772. doi: 10.1107/S1600576717014455

## See Also

- Diffuse Scattering from ORNL
- Diffuse scattering in crystals from ETH Zurich
- P. Ehrhart The configuration of atomic defects as determined from scattering studies
*Journal of Nuclear Materials***1978**, 6970, 200-214. doi: 10.1016/0022-3115(78)90244-1 - T. R. Welberry and D. J. Goossens Diffuse scattering and partial disorder in complex structures
*IUCrJ***2014**1 (6), 550-562 doi: 10.1107/S205225251402065X
